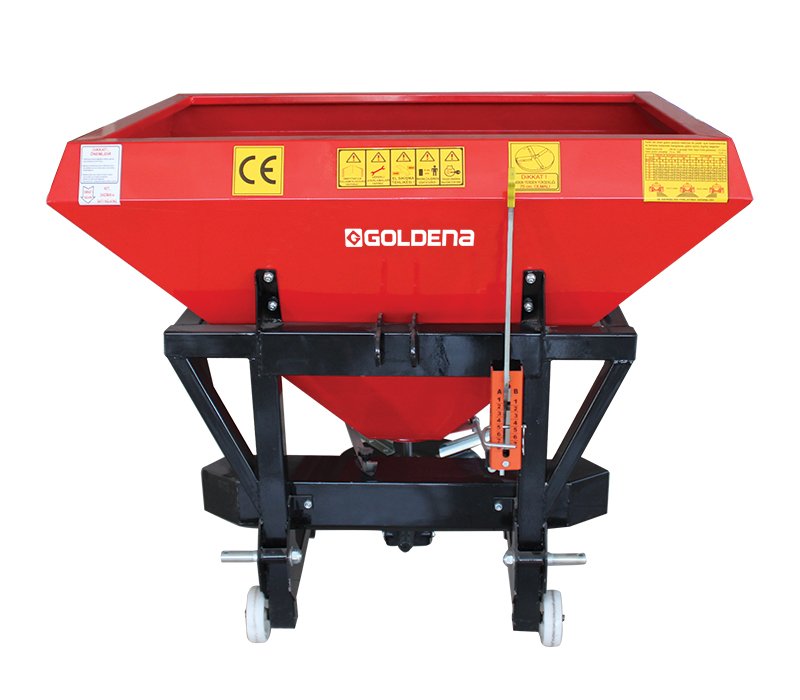

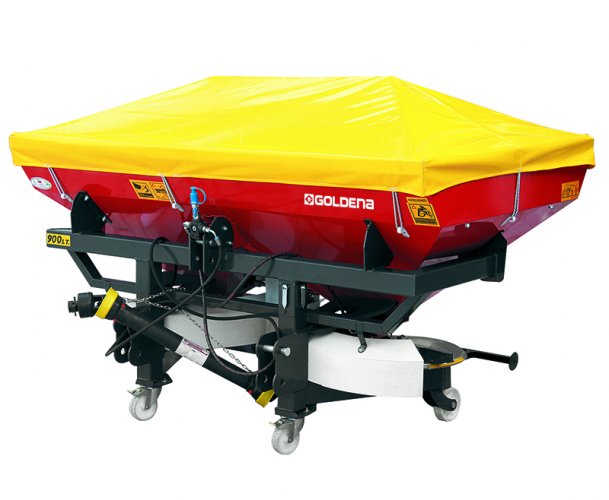

FERTILIZER SPREADERS / SQUARE

Fertilizer Spreaders are mounted to tractor by three point linkage system and driven by PTO shaft.

Fertilizer Spreaders are categorized as single discs  and double discs and they are produced as Hanging Type Fertilizer Spreaders and Trailed Fertilizer spreaders, too.

Capacity of Single disc spreaders are 400lt,500lt and 600lt and the capacity of double disc spreaders are 600lt-800lt and 1000lt.

Single disc's spreading capacity is max.18mt and the double disc's spreading capacity is 24mt.

Spreading capacity can be increased by changing the disc angles and wings' length depend on the fertilizer type.

Fertilizer spreader machine enriches the soil by spreading the fertilizer to plants as wheat, barley, oats, sorghum, canola, cotton, sugar beet, sunflower, corn, beans, and sunflower.

Fertilizer feeding can be opened and closed as mechanically or hydraulically as suitable to model of the machine.

The mixer equipped spreaders have mixing equipment for easy feeding and for crushing the lumps of fertilizer caused for humidity.

Technical Specifications	Model
	GFS 400	GFS 500	GFS 600	GFS-600D	GFS-800D	GFS-1000D
Capacity (lt)	400	500​	600	600​	800​	1000
Number of Disc	1	1	1	2	2	2
Width (mm)	1180	1405	1385	1500	1500	1805
Lenght (mm)	1210	1190	1140	1500	1130	1350
Height (mm)	1180	1230	1300	1270	1270	1200
Weight (kg)	88	132	142	196	200	214
Working Width (m)	18	18	18	24	24	24
Open/Close Adjusment	Mechanic	Hydraulic / Mechanic	Hydraulic / Mechanic	Hydraulic / Mechanic	Hydraulic / Mechanic	Hydraulic / Mechanic
