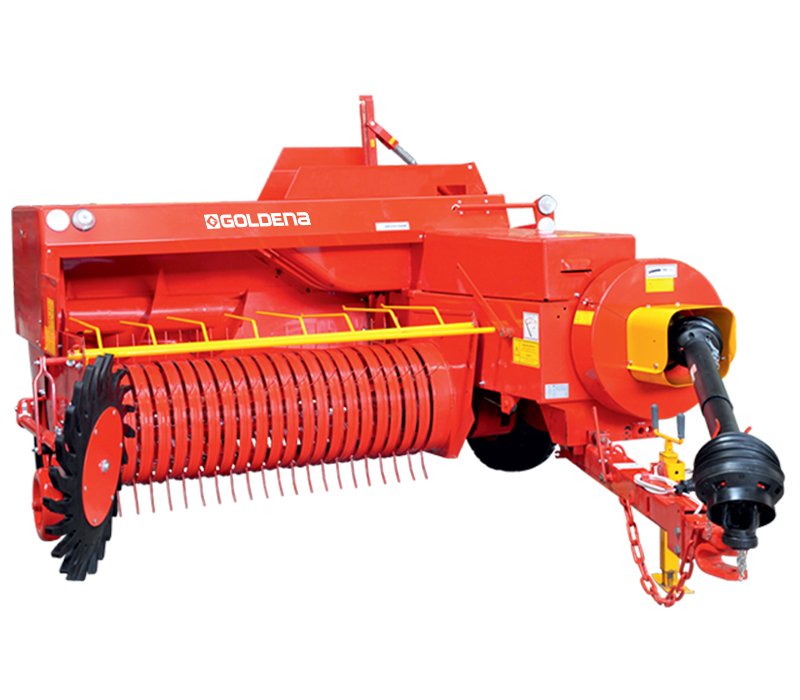

BALER MACHINE
BINDER SYSTEM: 2 rope binder unit is produced with special and hardened material. It can run continuous and also make uninterrupted bale.
HIGH WORKING WIDTH: 170 cm collecting unit width provides stable and smooth product flow with fast operating speed. At the same time large grass clumps can be easily collected.
WORK CABINET: Rope storage with 6 pieces rope capacity provide long time and uninterrupted working opportunities.
DIGITAL BALE COUNTER: Digital bale counter displays the daily and total bale numbers which is made.
EQUIPMENT CABINET: It provides operator to keep his equipment in it and it can be used as rope storage as well.
Technical
| TECHNICAL SPECIFICATIONS | |
| MODEL | GBL-170 |
| Bale Size (cm) | 36x46 |
| Bale Length (m) | 0,35-1,3 |
| Bale Weight (kg) | 12-26 |
| Working Width (cm) | 170 |
| Binder Type | 2 Ropes Knotter |
| Necessary Power | 55 |
| PTO (rpm) | 540 |
| Tire Size | 10.5/80-15.3 |
| Length (In Transport Position) (m) | 5.45 |
| Length (In Working Position) (m) | 6.45 |
| Width (m) | 2.31 |
| Height (mt) | 1.87 |
| Weight (kg) | 2050 |
| Work Efficiency (Bale/Day) | 1500-2200 |
