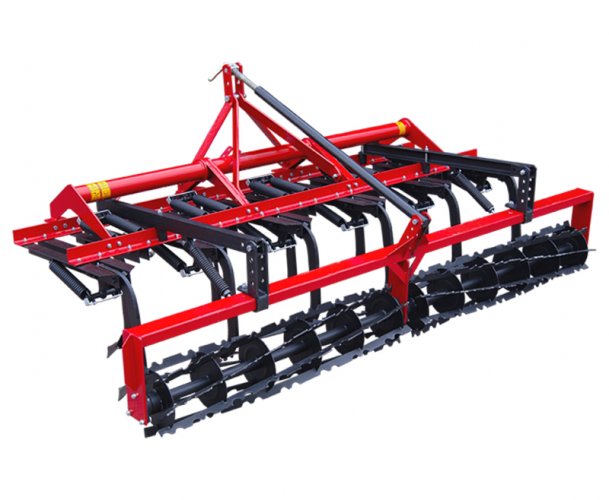

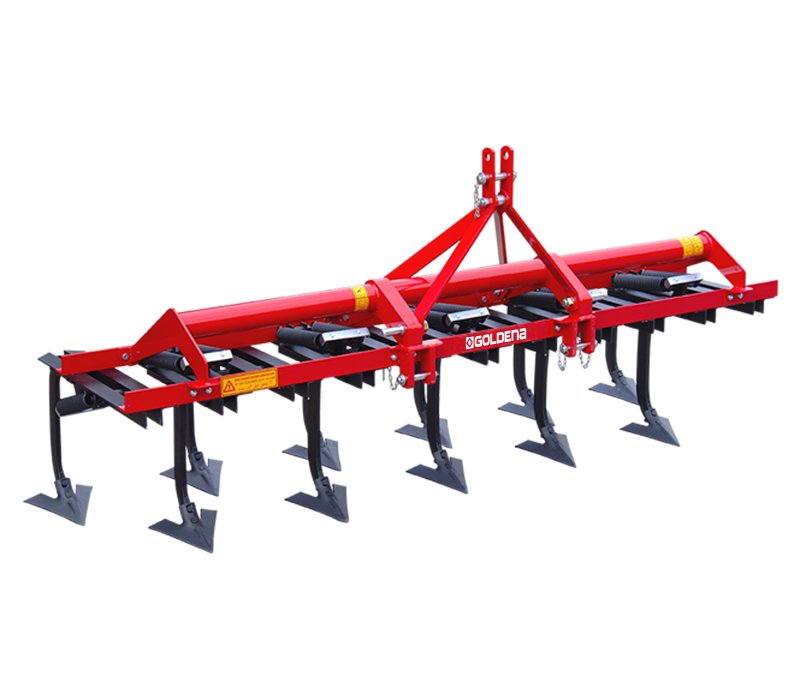

CULTIVATOR

The  cultivator is used for secondary tillage. Cultivators stir and pulverize the soil, either before planting (to aerate the soil and prepare a smooth, loose seedbed) or after the crop has begun growing to kill weeds—controlled disturbance of the topsoil close to the crop plants kills the surrounding weeds by uprooting them, burying their leaves.

Cultivators are attached to the tractors by means of a three-point hitch. Cultivators are produced as horizontal and vertical spring types and they are 7-9-11-13-15 tines. For preparing seedbed the cultivators are attached single or double rows rollers.

The tines can be produced optional as being duck-foot or narrow blades .

The foots are made of hardened steel strenght to hard tillage conditions.

Specifications	Unit	GCL 7	GCL 9	GCL 11	GCL 13	GCL 15
Number of tines	pcs	7	9	11	13	15
Total width (W)	mm	850	850	850	850	850
Total length (L)	mm	1700	2200	2700	3200	3700
Total height (H)	mm	1180	1180	1180	1180	1180
Working depth (max)	mm	300	300	300	300	300
Working width	mm	1700	2000	2700	3200	3700
Tine Space (W1)	mm	250	250	250	250	250
Required power	hp	40-50	50-60	60-70	70-80	80-90
Total weight	kg	220	270	320	370	440
