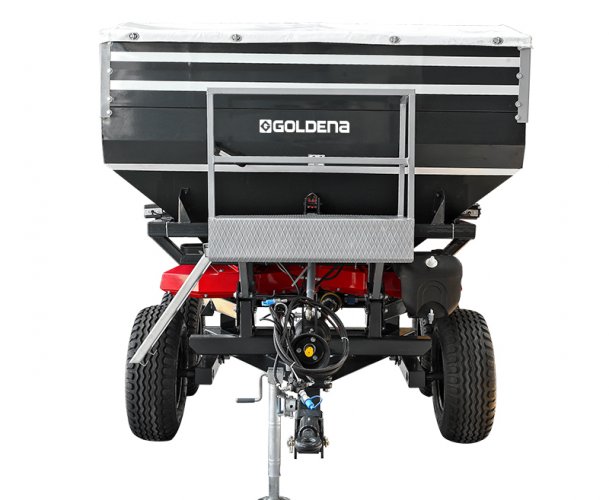

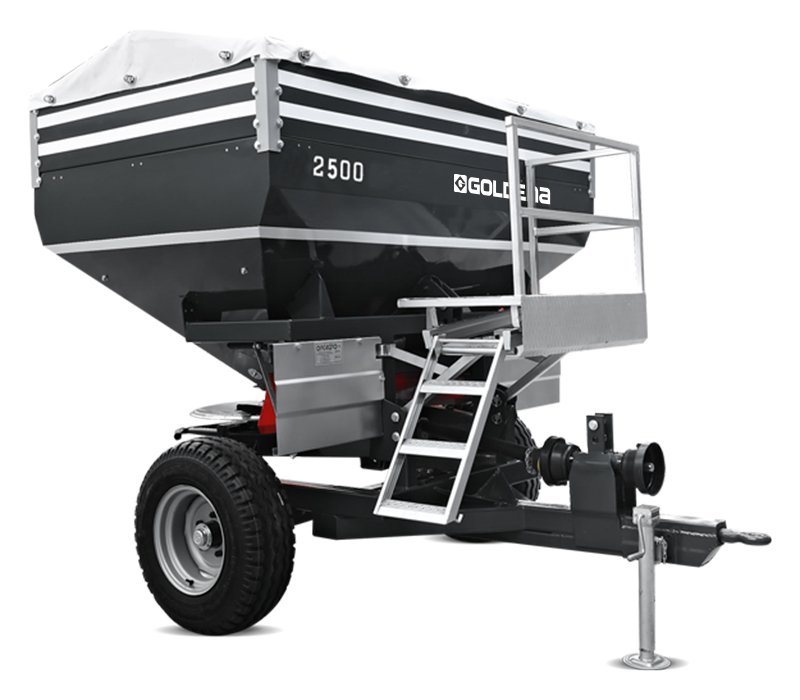

TRAILED FERTILIZER SPREADER

The trailed type fertilizer spreaders are manufactured in 2500lt-2800lt-3000lt and 3500lt. The spreading capacity changes between 10-16-18 and 24mt depends on the fertilizer type and the length of the wings of discs.

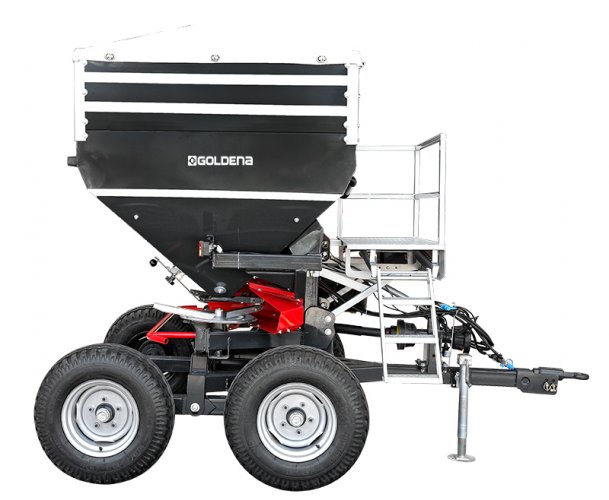

The trailed type fertilizer spreaders  have two types as single axle(two tires ) and double axle with four tires. They are prefered as suitable to capacity, land condition and distance of the land.


The mixers inside the tank provides mixing and pouring on spreader discs well and helps well spreading. The discs are produced stainless steel.


 The fertilizer spreaders are easily transported to the field where fertilizing shall take place, and there is no need to take a second tractor to the small fields for our machines with a high storage capacity.


Trailed Type Fertilizer Spreader machines with double discs are manufactured as trailed type. Spreader machines are driven by PTO shaft and manufactured with hydraulic controller.By this hydraulic control system, in the beginning of the border of land, from the tractor cabin, fertilizing can be controlled in the cabin and fertilizers are easily and quickly spreaded and also unnecessary fertilizer consumption is prevented.

TRAILED FERTILIZER SPREADER

Technical
Technical Specifications
Model
GFS- 2000TR GFS- 2500TR GFSD- 2500 TR GFSD- 3000 TR GFSD- 3500 TR
Spreader Disc RPM (rev/min/rpm) 720 720​ 720 720 720
Pallet Number in Spreader Disc 2 2 2 2 2
Empty Weight of Machine (kg) 640 680 800 850 900
Payload (kg) 2000 2500 2500 3000 3500
Height of the Machine (mm) 2240 2280 2330 2370 2390
Width of the Machine (mm) 2350 2350 2350 2350 2350
Length of the Machine (mm) 2250 2250 2440 2440 2440
Working Speed(km/h) 8-10-12 8-10-12 8-10-12 8-10-12 8-10-12
Working Width Standart (mt) 16-24 16-24 16-24 16-24​ 16-24​
Working Width Optional (mt) 24-36 24-36 24-36 24-36 24-36
Disc material Chrome Chrome Chrome Chrome Chrome
Painting Acrylic or Electrostatical Acrylic or Electrostatical Acrylic or Electrostatical Acrylic or Electrostatical Acrylic or Electrostatical
Control System Hydraulic  Hydraulic Hydraulic  Hydraulic Hydraulic
Axle Single Single Double Double​ Double​
Required Power 70-80 80-90 90-100 100-110 100-110
