SINGLE AXLE TRAILERS
Trailers are used for the transport of goods and materials in the agriculture, farms, and in building constructions.
Our trailers are produced in single and double axle types as suitable to using purposes and tonnage.
Our Trailers have :
Tipping and without tipping.
Tipping rear and sides optionally.
Hydraulic brake system
Springs suitable to tonnage
Additional side walls
Tires suitable to using purpose and tonnage
Lighting system for traffic
Tool box
Four side opening walls
Strengtened flatbed sheet material
Tandem type single axle
Strong axle and more.
Technical
| TECHNICAL SPECIFICATIONS | UNITS |
MODELS
|
|||
| GSTR-3,5 | GSTR-4 | GSTR-5 | GSTR-6 | ||
| Carrying Capacity | Tons | 3,5 | 4 | 5 | 6 |
| Axle Type | Single Axle | Single Axle | Single Axle | Single Axle | |
| Length | cm | 300 | 330 | 350 | 380 |
| Width | cm | 190 | 190 | 200 | 200 |
| Side Wall Height | cm | 40 | 45 | 45 | 50 |
| Additonal Wall Height | cm | 25 | 25 | 25 | 35 |
| Tyre Size | 900x16 | 900x16 | 900x16 | 400 / 60-15,5 | |
| Tipping | Rear | Rear | Rear | Rear | |
| Brake System | Hydraulic (Opt.) | Hydraulic (Opt.) | Hydraulic (Opt.) | Hydraulic (Opt.) | |
| Electric System | Optional | Optional | Optional | Optional | |
* Single Axle trailers can be produced in inquired tonnage and specifications
* Single Axle trailers can be produced with double tyres (Tandem) models.

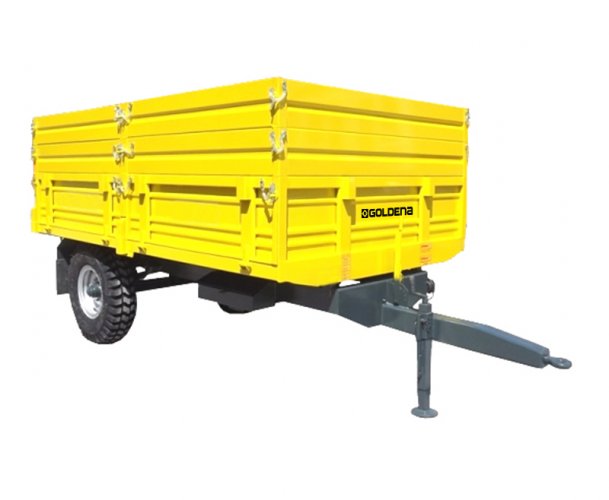

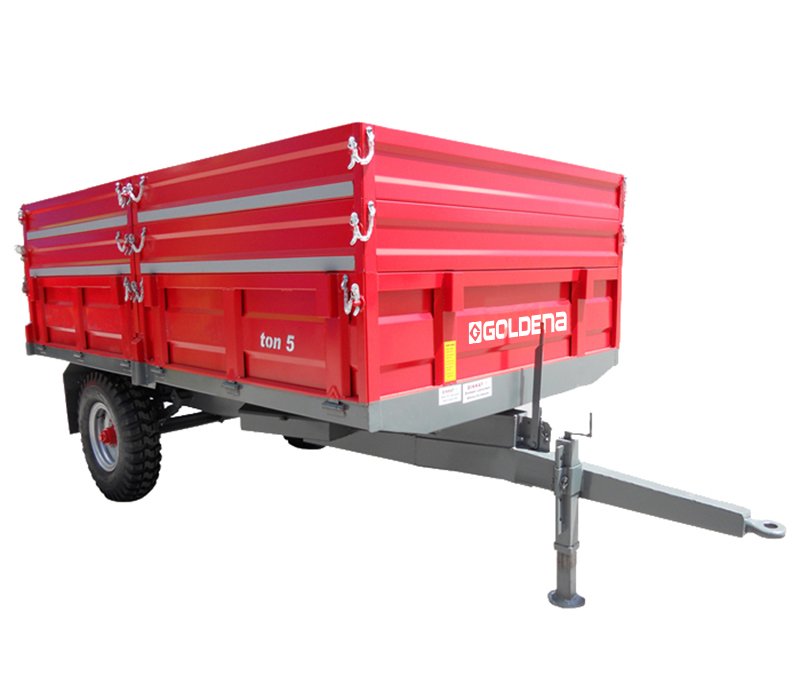

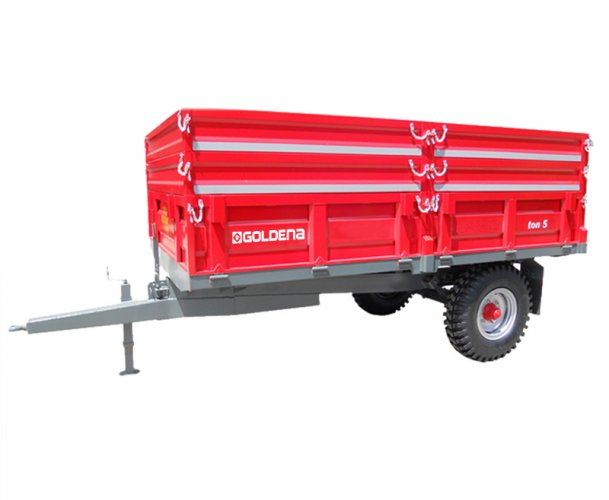

Photo Galeri
