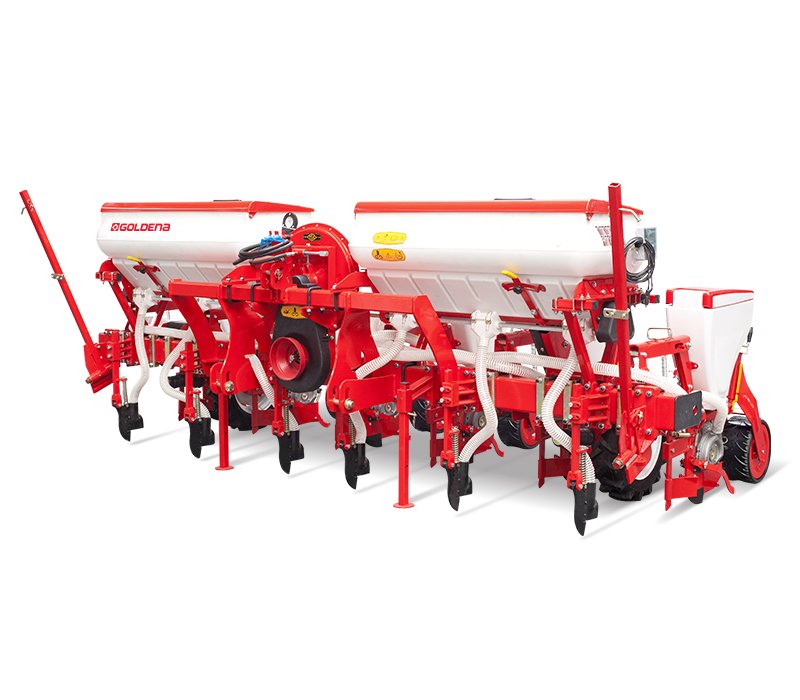

PNEUMATIC SEED DRIL with AXE

Pneumatic Seeder with Axe Foot machine can seed all kind of seeds precisely such as sugarbeet, groundnut, corn, sunflower, cotton, soya, watermelon, melon, cucumber, onion etc.

In wished row space and over row distances.

It is produced in 2- 4-5-6-7-8 -12 rows depend on demand of the customer.

Pneumatic seeders are produced with-fertilizer unit and without-fertilizer unit according to the inquiry.

Axe foot pneumatic seeders can sow the seeds in all kind of lands especially the rough and stony lands by the help of axe feet.

Different size of axe feet can be fixed on the machine as suitable to seed kind and size.

Axe feet are made of special alloyed steel casting which is not easily worn out.

Tires have scrapers.

The seeding units are produced with front compresion tires for smaller seeds.

Different typres of compression tyres such as wide,narrow,double etc can be mounted according to demand of the farmers.

Rear compression tire pressure on the soil can be adjusted by the means of one arm.

The sowing depth control can be done by the spring pressure unit as suitable to kind of soil.

The units can be easily prepared for the road position.

MODEL KODU	NUMBER OF ROWS	TOTAL LENGTH (CHASSIS)	WIDTH	HEIGHT	ROW SPACE	SEED HOPPER CAPACITY	FERTILIZER HOPPER CAPACITY	P.T.O.	NECESSARY POWER	WEIGHT with FERTILIZER UNIT
	pcs	mm	mm	mm	cm	dm3	dm3	Rpm	Min. HP	kg
GPNA-4	4	2800	2000	1600	45-70-75-95	30x4	160x2	540	65	880
GPNA-5	5	3000	2000	1600	45-70-75-96	30x5	200x2	540	70	1000
GPNA-6	6	4000	2000	1600	45-70-75-97	30x6	200x2	540	75	1200
GPNA-8	8	5600	2000	1600	45-70-75-98	30x8	200x4	540	95	1480
