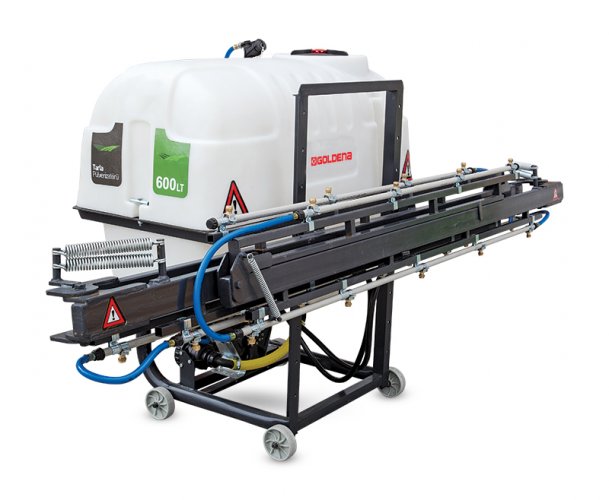

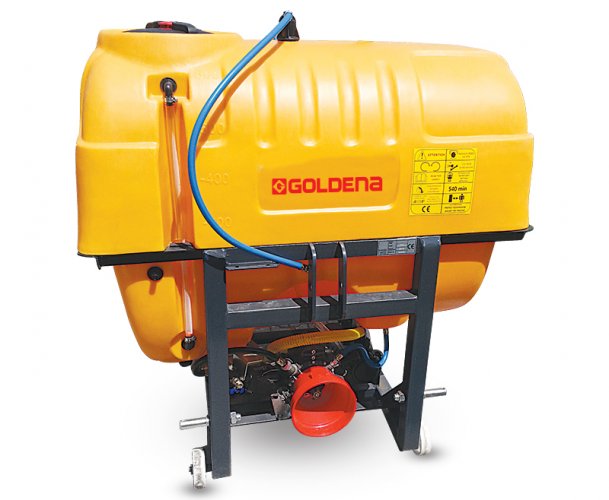

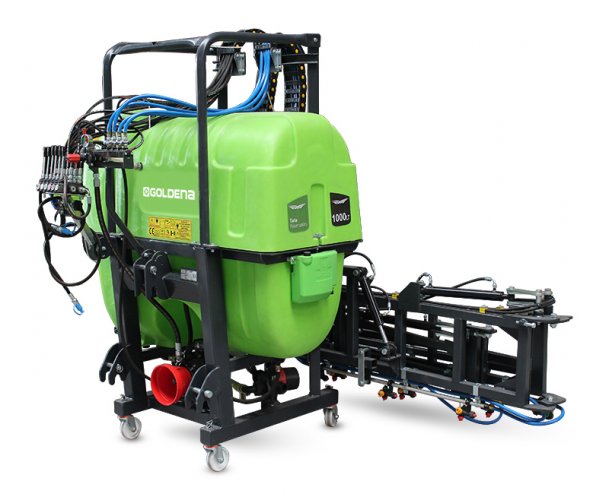

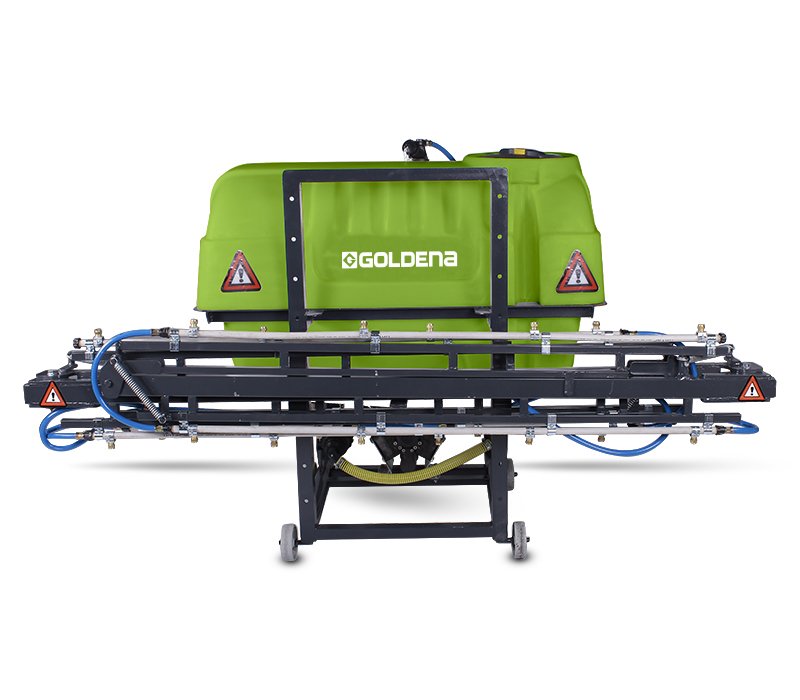

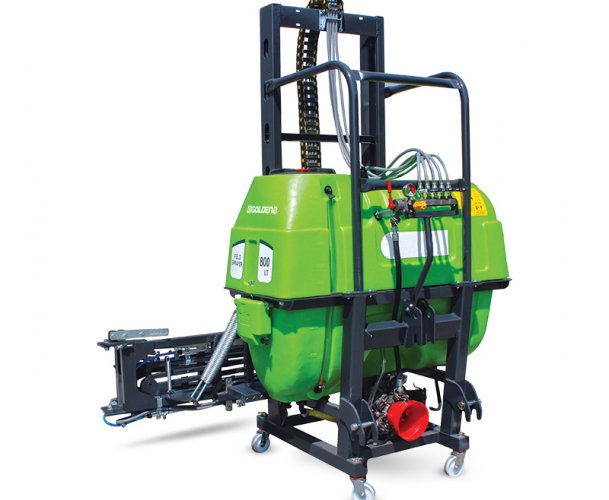

MOUNTED TYPE FIELD SPRAYERS
Mounted Type Sprayers are produced in 400-500-600-800 and 1000lt capacity. Sprayer are mounted to tractor by the means of three point linkage system and they are driven by PTO shaft with 540rpm.
They are used for all kind of plant protection such as wheat, barley, oat, rye,maize, sunflaoer, soya, canola, sorghum, cotton, sugarbeet etc. for destroying weeds, for fighting the diseases and for fighting the insects, pets which are harmful to plant health.
The chemicals are sprayed by the means of conical nozzles on the wings of sprayer in equal volume of misting.
Suitable in any field condition.
Tank can be polyethilene or fiberglass.
Standard Turkish pumps are used
Different type and size of booms can be used.
Level Indicator on the tank
Easy cleanable water filter.
Pressure regulation
Extra boom protection (Opt.)
Mechanical and Hydraulic Boom Lifting (Opt.)
Different types of nozzles (Opt.)
|
Technical Specifications
|
MODEL
|
||||
|
GSP 400M
|
GSP 500M
|
GSP 600M
|
GSP 800M
|
GSP 1000M
|
|
| Capacity (lt) | 400 | 500 | 600 | 800 | 1000 |
| Pump Type | 80 Membrane Pump | 80 Membrane Pump | 80 Membrane Pump | 80 Membrane Pump | 105 Membrane Pump |
| Flow Rate (l/min) | 80 | 80 | 80 | 80 | 105 |
| Pressure (bar) | 50 | 50 | 50 | 50 | 50 |
| Rotation (rev/min) | 540 | 540 | 540 | 540 | 540 |
| Width (mm) | 900 | 770 | 770 | 800 | 800 |
| Length (mm) | 1150 | 1300 | 1400 | 158 | 1650 |
| Height (mm) | 1300 | 1420 | 1420 | 1600 | 1650 |
| Weight (kg) | 127 | 137 | 150 | 255 | 310 |
| Boom Type - Lenght (mt) | 10-12 | 10-12 | 10-12 | 10-12-15 | 10-12-15 |
| Necessary Power (hp/kw) | 8,6 | 8,6 | 8,6 | 8,6 | 13 |
