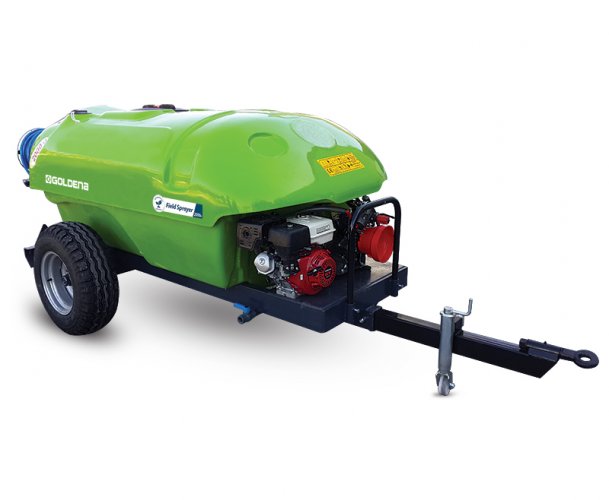

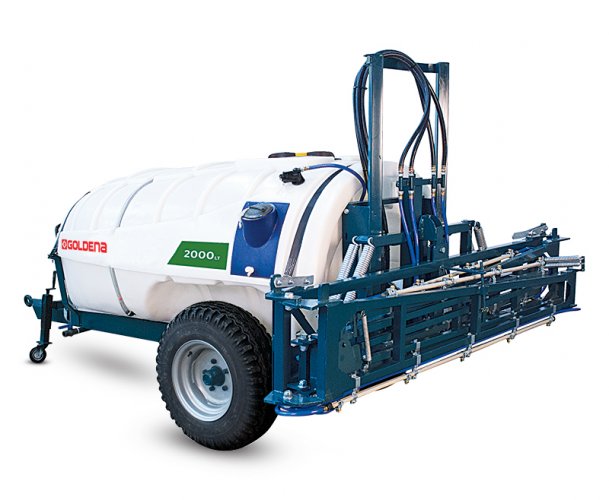

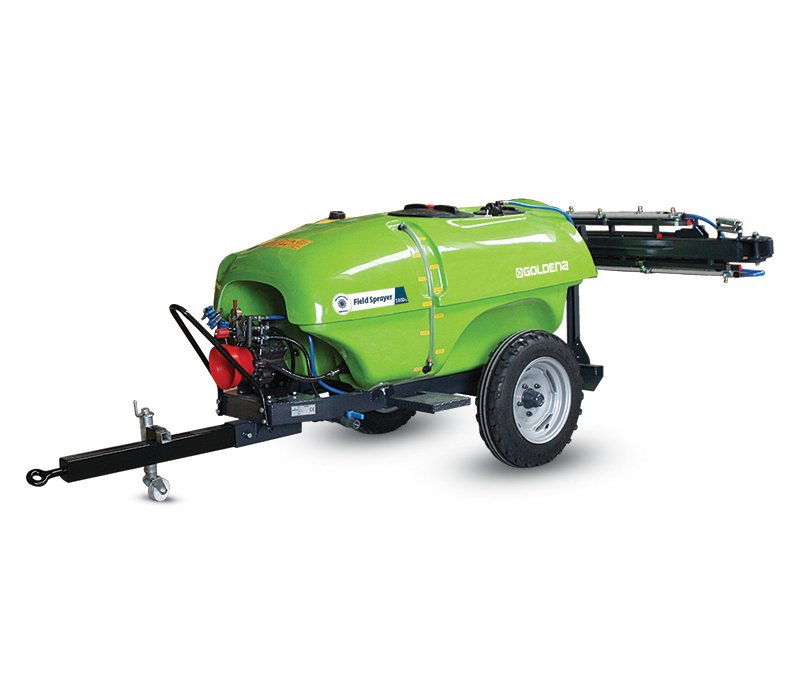

TRAILED TYPE SPRAYERS
Trailed Type Sprayers are produced in 1000-1100-1200-1500-1600 and 2000lt capacity. Sprayer are connected to tractor by the means of draw bar and they are driven by the PTO shaft with 540rpm.
The transportation of trailed sprayers are easy to transport between lands and it is easy to transport all kind of lands by the means of tires.
They are used for all kind of plant protection such as wheat, barley, oat, rye,maize, sunflaoer, soya, canola, sorghum, cotton, sugarbeet etc. for destroying weeds, for fighting the diseases and for fighting the insects, pets which are harmful to plant health.
The chemicals are sprayed by the means of conical nozzles on the wings of sprayer in equal volume of misting.
Suitable to transport in any field condition.
Tank can be polyethilene or fiberglass.
Standard Turkish pumps are used
Different type and size of booms can be used.
Level Indicator on the tank
Easy cleanable water filter.
Pressure regulation
Extra boom protection (Opt.)
Mechanical and Hydraulic Boom Lifting (Opt.)
Different types of nozzles (Opt.)
|
Technical Specifications
|
MODEL
|
|||
|
GSP 1000T
|
GSP 1200T
|
GSP 1500T
|
GSP 2000T
|
|
| Capacity (lt) | 1000 | 1200 | 1500 | 2000 |
| Pump Type | 105 Membrane Pump | 105 Membrane Pump | 105 Membrane Pump | 105 Membrane Pump |
| Flow Rate (l/min) | 105 | 105 | 105 | 105 |
| Pressure (bar) | 50 | 50 | 50 | 50 |
| Rotation (rev/min) | 540 | 540 | 540 | 540 |
| Width (mm) | 1450 | 1550 | 1600 | 1650 |
| Length (mm) | 2300 | 2400 | 2500 | 2600 |
| Height (mm) | 1050 | 1150 | 1250 | 1350 |
| Weight (kg) | 325 | 375 | 400 | 455 |
| Boom Type - Lenght (mt) | 10-12-15 | 10-12-15 | 10-12-15 | 10-12-15 |
| Necessary Power (hp/kw) | 13 | 13 | 13 | 13 |
